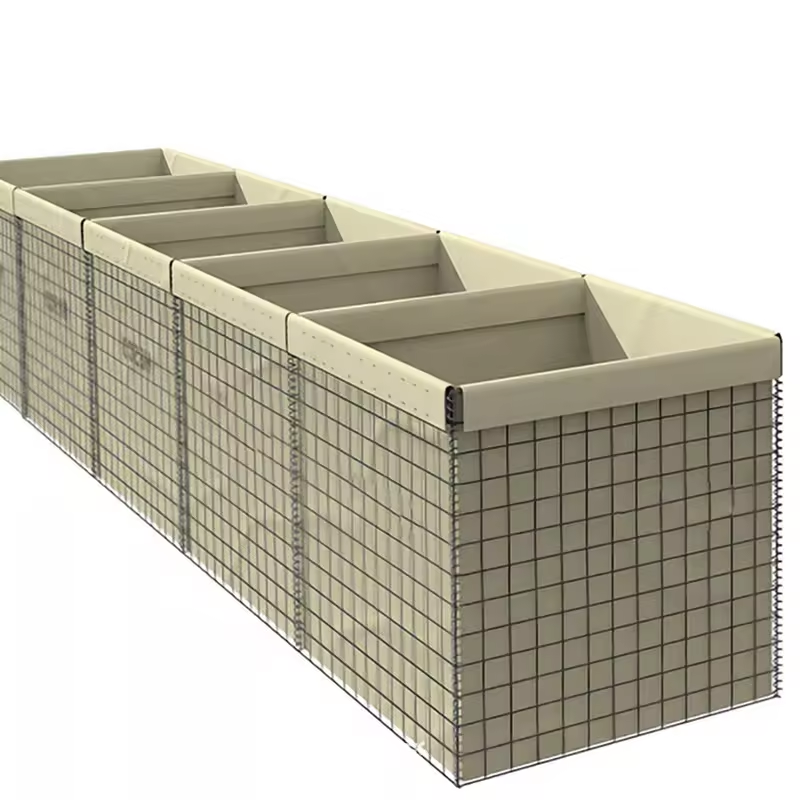

Standard Military Defensive Barriers

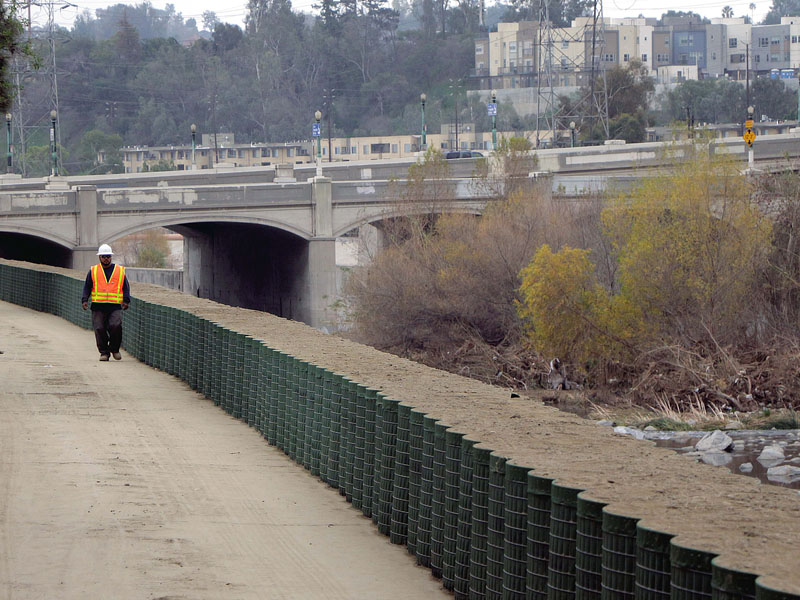

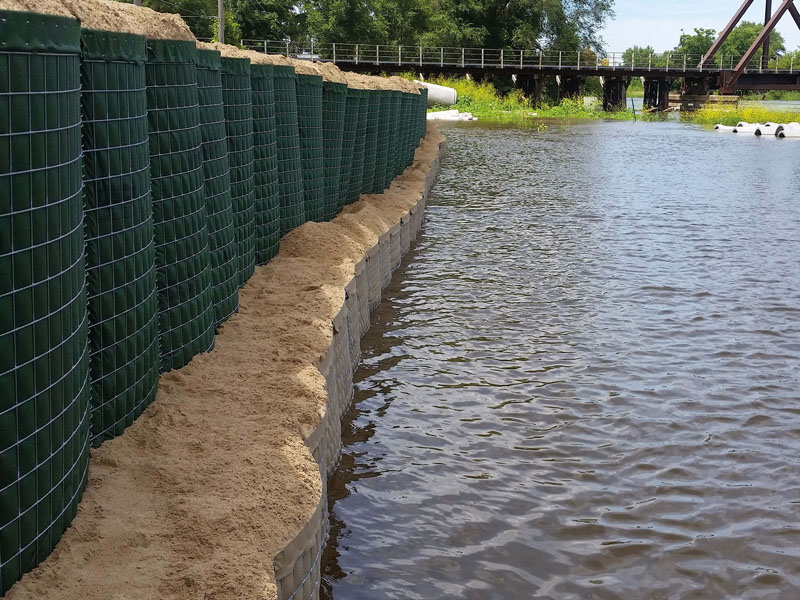

The Defensive Barrier is a modern gabion primarily used for flood control and military fortifications. It is made of a collapsible wire mesh and heavy duty fabric liner(geotextile), and used as a temporary to semi-permanent levee or blast wall against explosions or small-arms.
Since it is a flat packed unit, it can be assembled faster with minimal manpower, handling equipment and fill material.
Sepcifications:
Material: hot-dipped galvanized steel wire or zinc-aluminum alloy steel wires.
Wire diameter: 4 mm or 5 mm.
Mesh size: 50 × 50 mm, 75 × 75 mm, 76.2 × 76.2 mm, 50 × 100 mm, 100 × 100 mm, etc.
Geotextile: 2 mm heavy duty non-woven polypropylene.
Geotextile color: White, beige, Military Green and other customized colors.

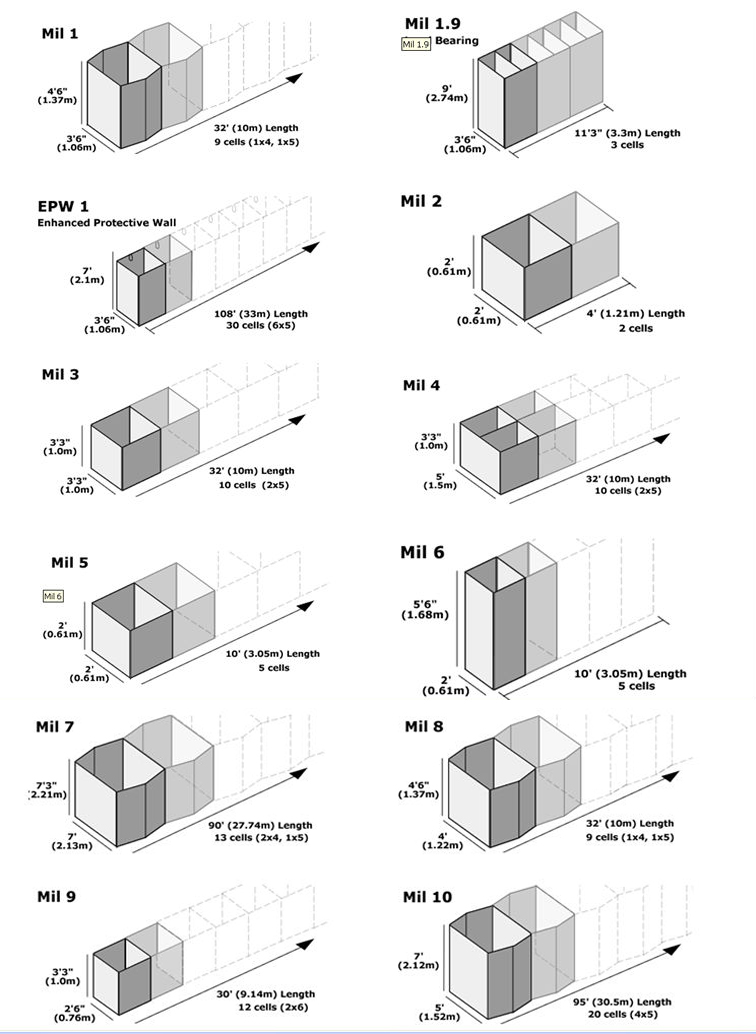

| # | Item | Height | Width | Length | Cell | |||
|---|---|---|---|---|---|---|---|---|
| inch | m | inch | m | inch | m | |||
| 1 | DB-1(Mil 1) | 4'6" | 1.37 | 3'6" | 1.06 | 32' | 10 | 9 (1 × 4, 1 × 5) |
| 2 | DB-1.9(Mil 1.9) | 9' | 2.74 | 3'6" | 1.06 | 11'3" | 3.3 | 3 |
| 3 | DB-2(Mil 2) | 2' | 0.61 | 2' | 0.61 | 4' | 1.21 | 2 |
| 4 | DB-3(Mil 3) | 3'3" | 1 | 3'3" | 1 | 32' | 10 | 10 (2 × 5) |
| 5 | DB-4(Mil 4) | 3'3" | 1 | 5' | 1.5 | 32' | 10 | 10 (2 × 5) |
| 6 | DB-5(Mil 5) | 2' | 0.61 | 2' | 0.61 | 10' | 3.05 | 5 |
| 7 | DB-6(Mil 6) | 5'6" | 1.68 | 2' | 0.61 | 10' | 3.05 | 5 |
| 8 | DB-7(Mil 7) | 7'3" | 2.21 | 7' | 2.13 | 90' | 27.74 | 13 (2 × 4, 1 × 5) |
| 9 | DB-8(Mil 8) | 4'6" | 1.37 | 4' | 1.22 | 32' | 10 | 9 (1 × 4, 1 × 5) |
| 10 | DB-9(Mil 9) | 3'3" | 1 | 2'6" | 0.76 | 30' | 9.14 | 12 (2 × 6) |
| 11 | DB-10(Mil 10) | 7' | 2.13 | 5' | 1.52 | 95' | 30.5 | 20 (4 × 5) |
| 12 | EPW 1 | 7' | 2.13 | 3'6" | 1.06 | 108' | 33 | 30(6x5) |

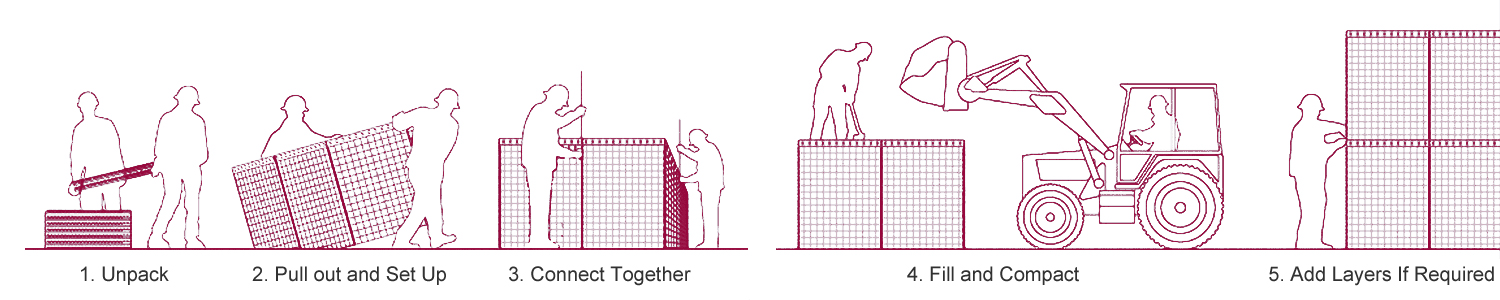

Installation Guide
Defensive Barrier Can Be Used For:

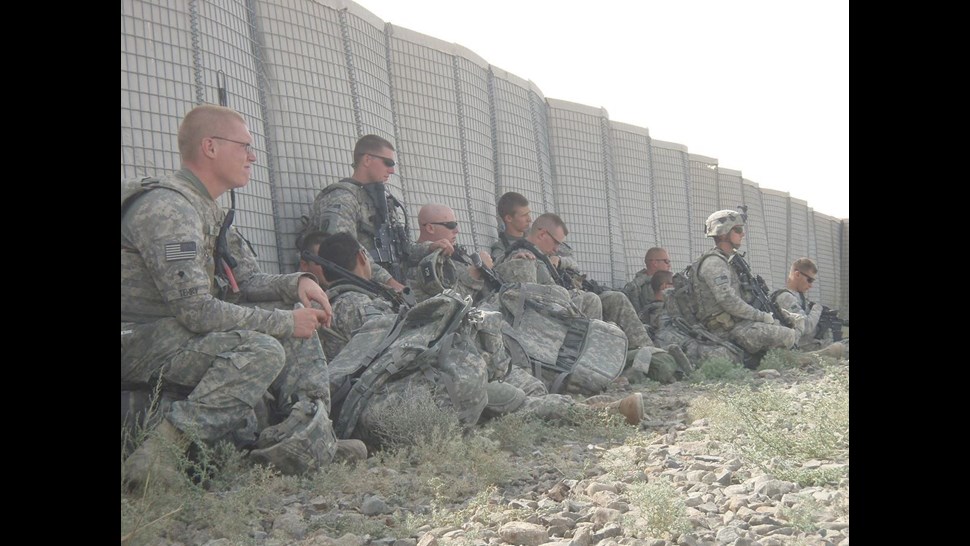

Defensive Walls

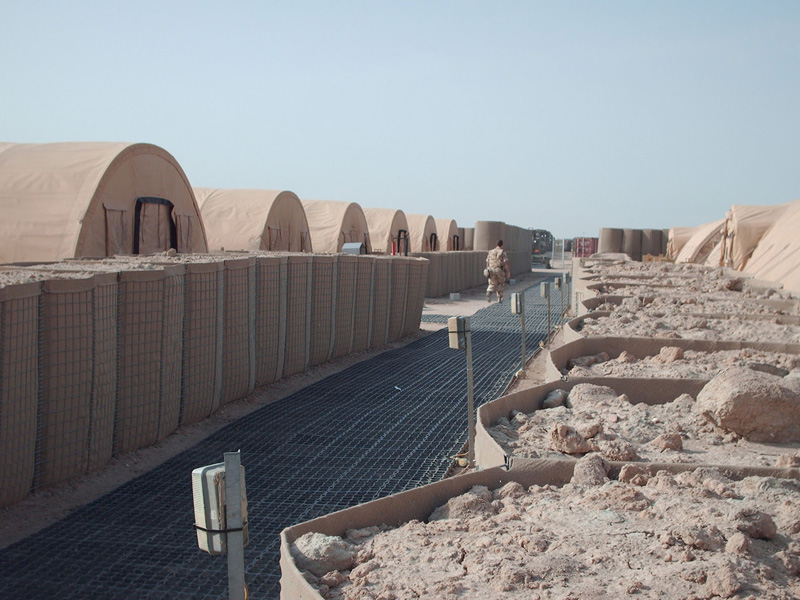

Forward Operating Bases
Accommodation Bunkers
Perimeter Security
Blast And Balpstic Protection
Command And Control Centres
Traning Ground And Shoot Houses
Miptary Compounds
Ammunition Storage
Explosive Traverses
Vehicle Check Points
Hostile Vehicle Mitigation

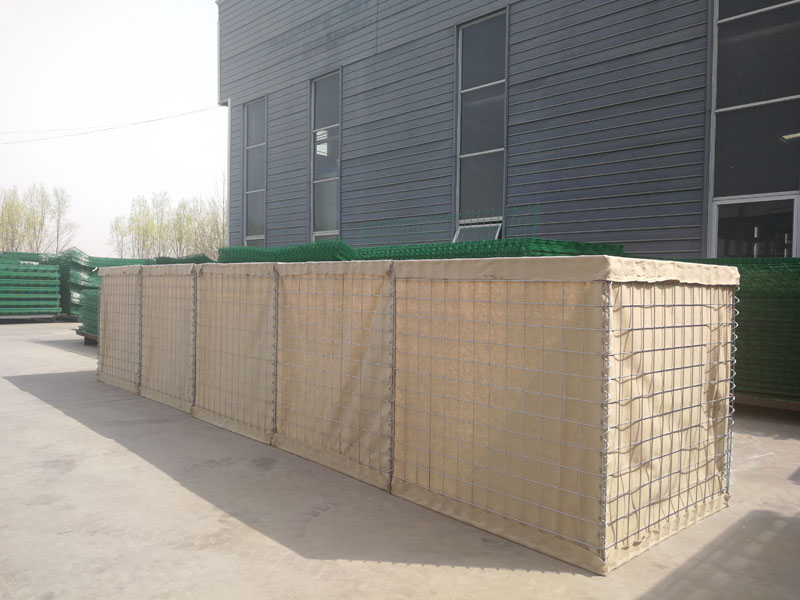

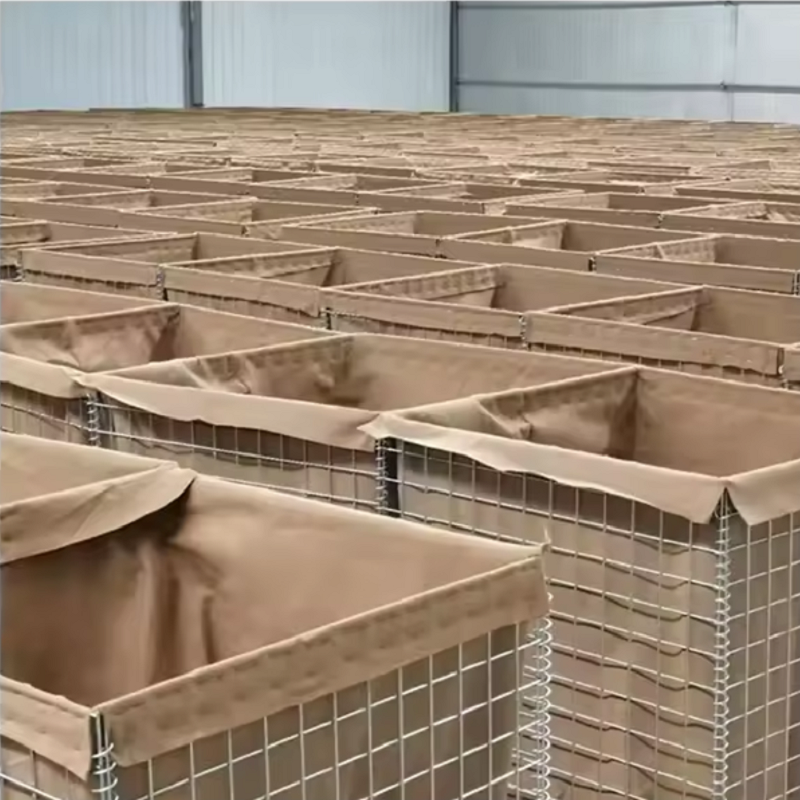

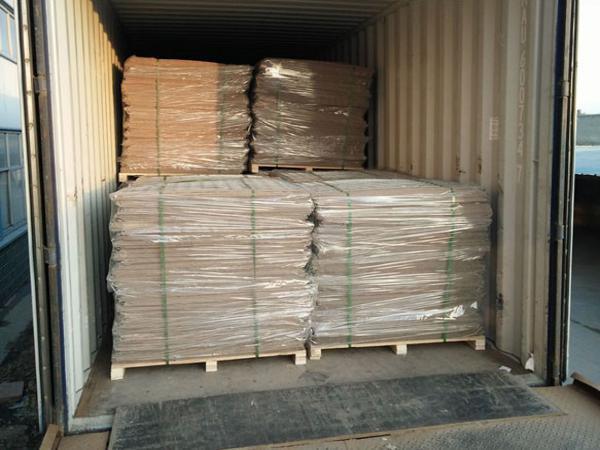

Production Photos
