358 high security mesh
358 Mesh is a welded mesh panel that is used in fencing, combined with a steel support structure. It is considered one of the best choices for high security fencing around the world, because it is hard to cut and hard to climb, but it still allows enough visibility through the fence.
358 Mesh is called that because of the dimensions and materials it is manufactured with. Apertures are 3 inches long and 0.5 inches high, and the panels are manufactured from 8 gauge wire. Similarly, you can choose 356 mesh and 3510 mesh in some parts of the world.
Features
High level of security: the small openings and strong welded steel wire make it difficult to cut or climb.
Durable: resistant to corrosion, weathering, and wear and tear, with minimal maintenance required Good visibility and air circulation: allows for clear sightlines and ventilation, while still providing security.
Cost-effective: a long-lasting solution that can save money over time compared to other security options.
Specifications
Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5") resistance welded well at each intersec.
Wire diameter: 4 mm horizontal wire and vertical Wire.
Weld strength: range 540-690 N/m2.
Surface treatment: 358 mesh fence panels made from Galvan wire, then PVC powder coating (min. 100 microns), or PVC powder painting. It provides additional protection and increases the potential life span.
Colors: Green RAL 6005, or Black RAL 9005.

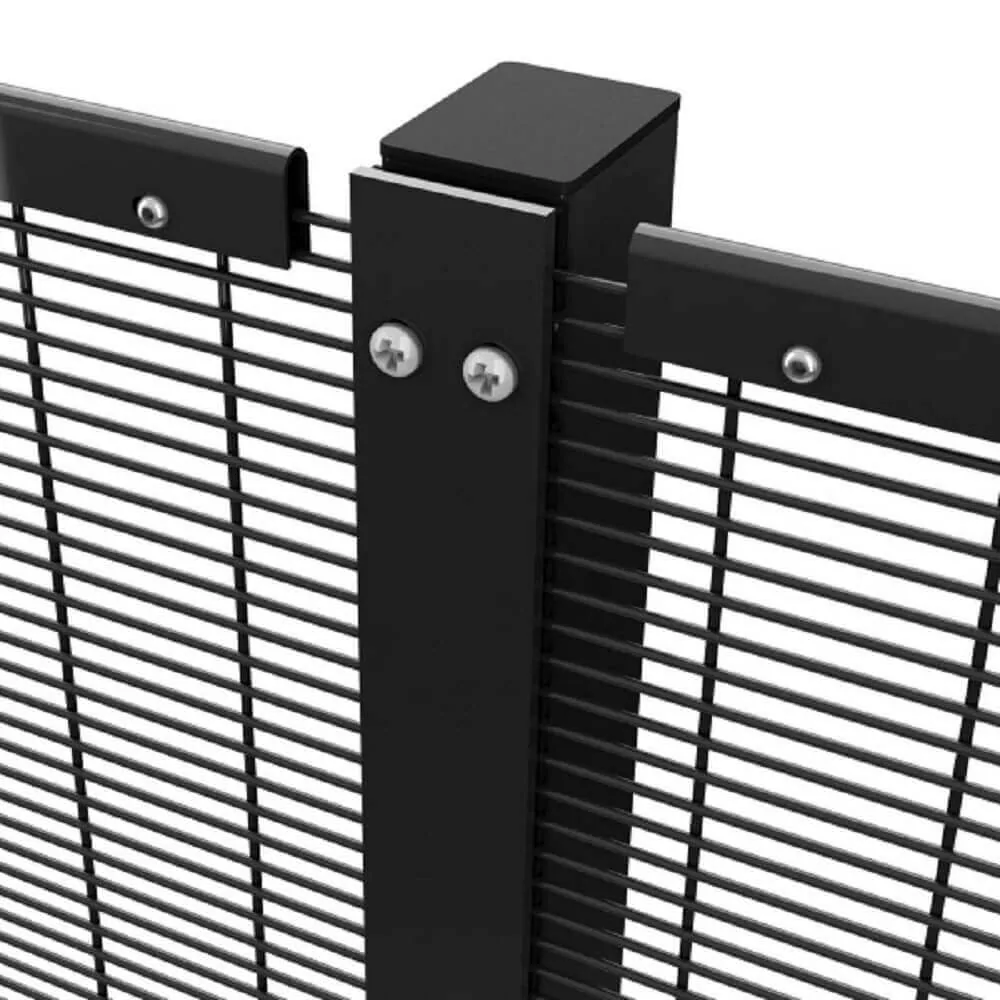

Installation: Overlapped 75 mm minimum at each post for securing with slotted clamp bars and M8 diameter bolts.
| # | Fence Height(M) | Panel Size(H*W) | Post(H*Size*Thick) | Clamp Bar(H*W*Thick) | Inter or comer clamp No(PCS) |
|---|---|---|---|---|---|
| 1 | 2m | 2007mmx2515mm | 2700x60x60x2.5mm | 2007mmx60x5.00mm | 7 or 14 |
| 2 | 2.4m | 2400mmx2515mm | 3100x60x60x2.5mm | 2400mmx60x5.00mm | 9 or 18 |
| 3 | 3m | 2997mmx2515mm | 3800x80x80x2.5mm | 2997mmx80x6.00mm | 11 or 22 |
| 4 | 3.3m | 3302mmx2515mm | 4200x80x80x2.5mm | 3302mmx80x6.00mm | 12 or 24 |
| 5 | 3.6m | 3607mmx2515mm | 4500x100x60x3.0mm | 3607mmx100x7.0mm | 13 or 26 |
| 5 | 4.2m | 4204mmx2515mm | 5200x100x100x4.0mm | 4204mmx100x8.0mm | 15 or 30 |
| 7 | 4.5m | 4496mmx2515mm | 5500x100x100x5.0mm | 4496mmx100x8.00mm | 16 or 32 |
| 8 | 5.2m | 5207mmx2515mm | 6200x120x120x5.0mm | 5207mmx100x8.00mm | 18 or 36 |

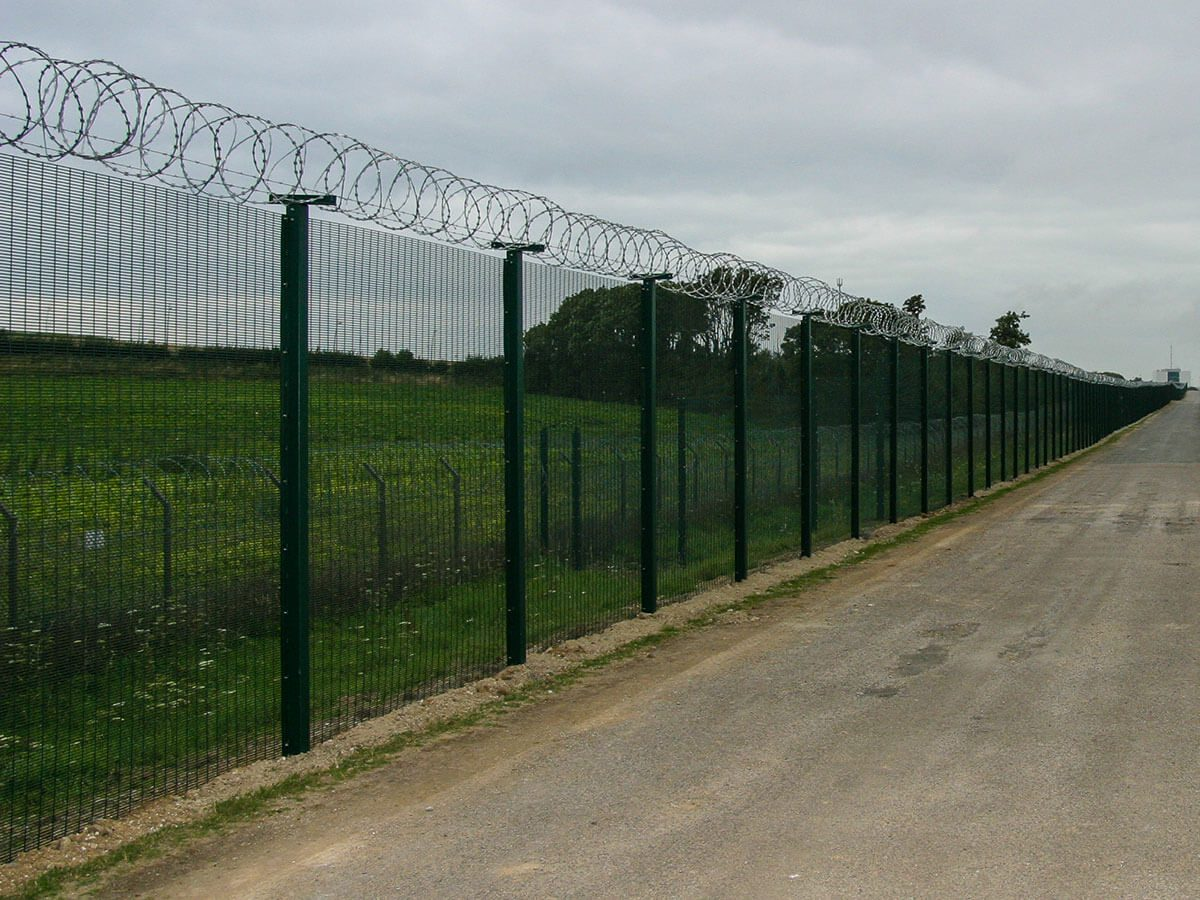

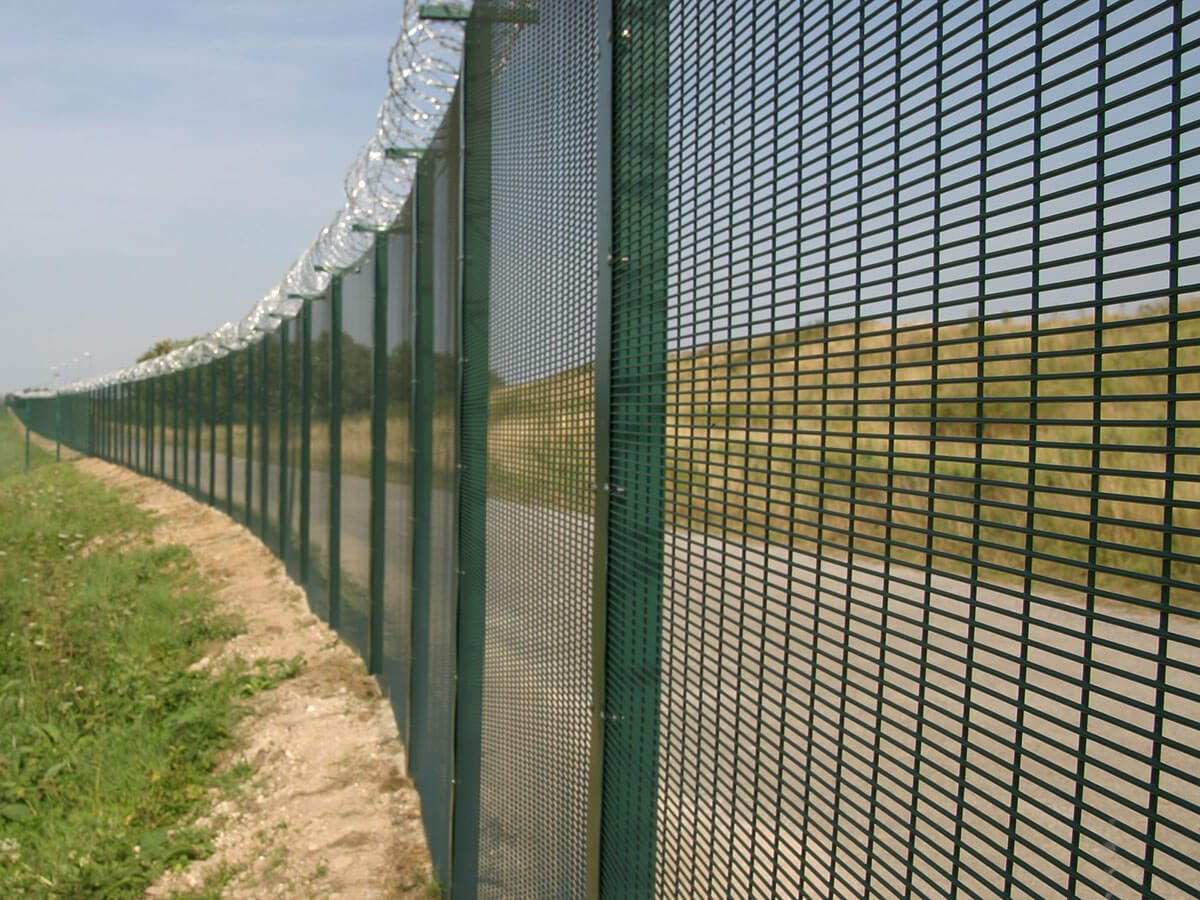

Applications
Prisons and correctional facilities
Military bases and government buildings

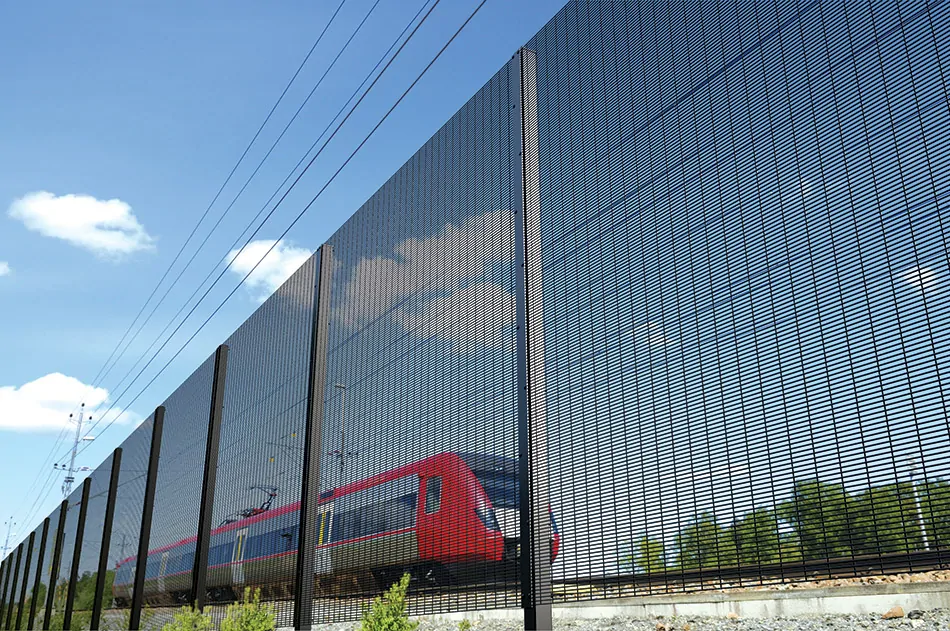

Airports and transportation hubs
Industrial and commercial properties
Data centers and server farms
Schools and universities
Sports facilities and stadiums
High-risk residential properties
