Hexagonal Gabion Basket
Gabions are rectangular cages made of hexagonal double-twist wire mesh filled with appropriately sized rock or quarry stone. Gabions are used in many situations including the stabilization of earth movement and erosion, river control, reservoirs, canal refurbishment, landscaping and retaining walls.Gabions are compartmentalized rectangular containers of galvanized steel hexagonal wire mesh that are filled with stone. While maintaining sufficient strength to contain the stone used as a fill, gabions must be able to settle, twist, and conform to channel and foundation shifts.
Optional Materials
Galvanized wire:zinc coating can be from 40-280g per square meter.
Galfan wire:also called aluminum-zinc coated wire (10% Al)zinc weight can be from 200g-500g per square meter
PVC coated wire:The inner wire is galvanized wire or galfan wire,and the regular color is gray and green
Specifications
Mesh Wire:2.2mm,2.7mm,3.0,3.2mm,3.7mm
Mesh Opening:60mmx80mm,80mmx100mm,90mmx110mm,100mmx120mm
Selvedge Wire:3.0mm,3.4mm,3.8mm
Tie Wire:2.2mm
| # | Length(m) | Width(m) | Height(m) | Cell Nos(pcs) | Volume(cbm) |
|---|---|---|---|---|---|
| 1 | 2 | 1 | 1 | 2 | 2 |
| 2 | 3 | 1 | 1 | 3 | 3 |
| 3 | 4 | 1 | 1 | 4 | 4 |
| 4 | 2 | 1 | 0.5 | 2 | 1 |
| 5 | 3 | 1 | 0.5 | 3 | 1.2 |
| 6 | 4 | 1 | 0.5 | 4 | 2 |
| 7 | 2 | 1 | 0.3 | 2 | 0.6 |
| 8 | 3 | 1 | 0.3 | 3 | 0.9 |
| 9 | 4 | 1 | 0.3 | 4 | 1.2 |
Applications

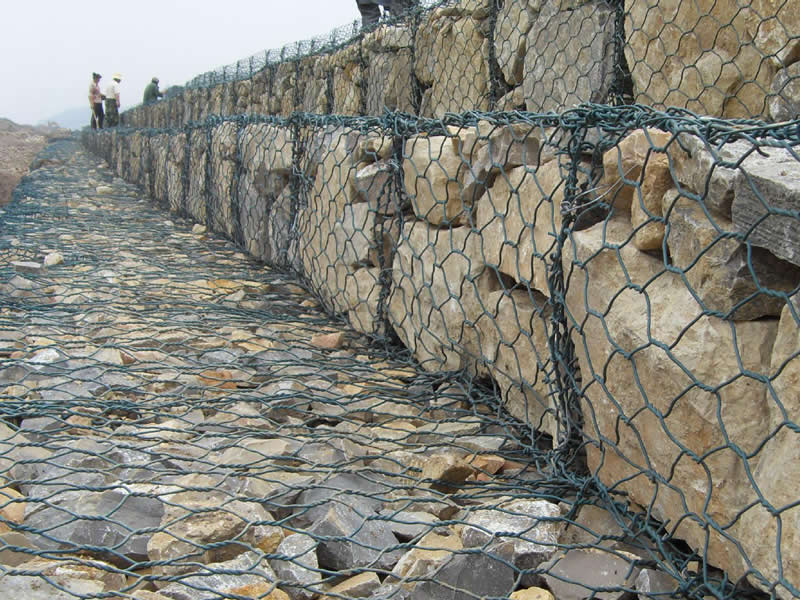

Retaining wall.

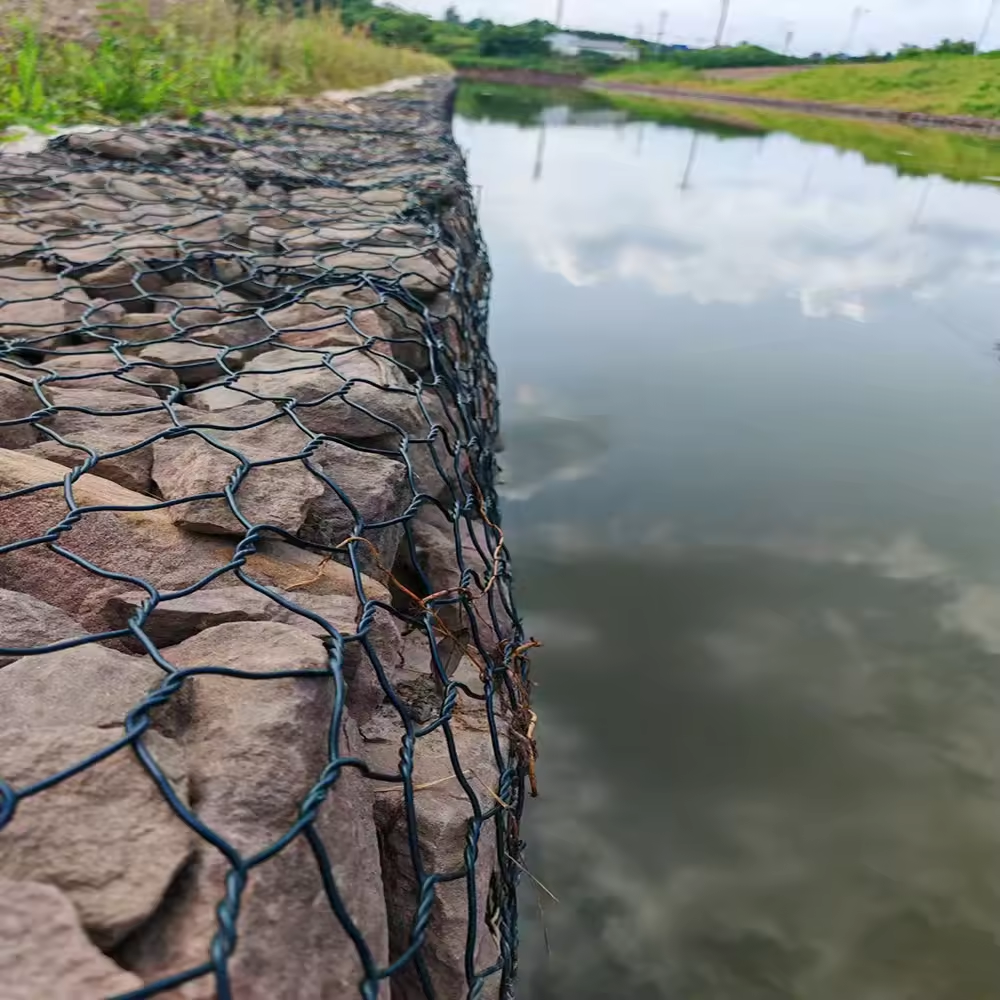

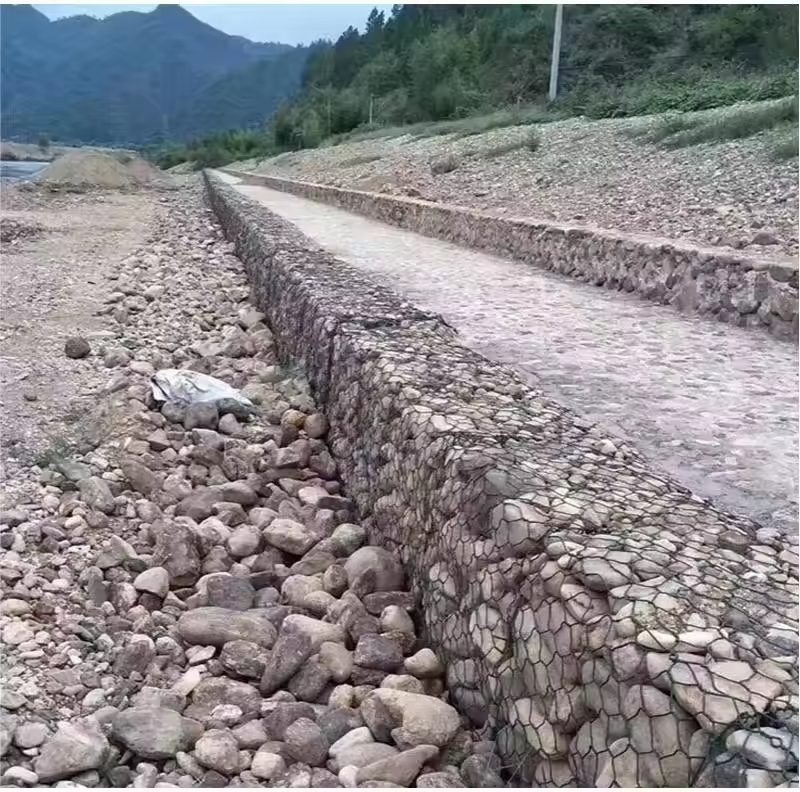

River way controlpng.

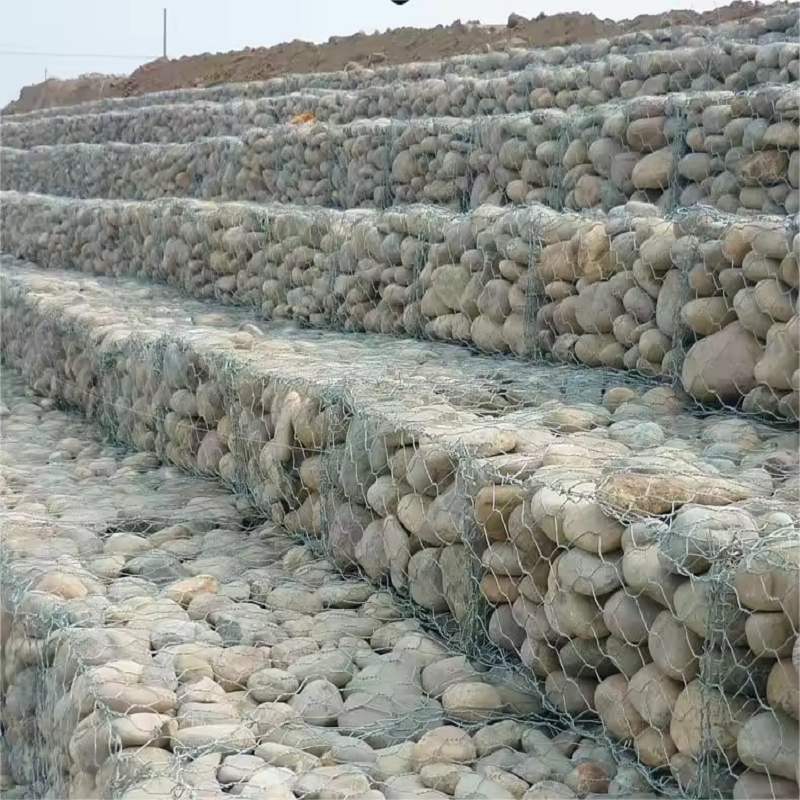

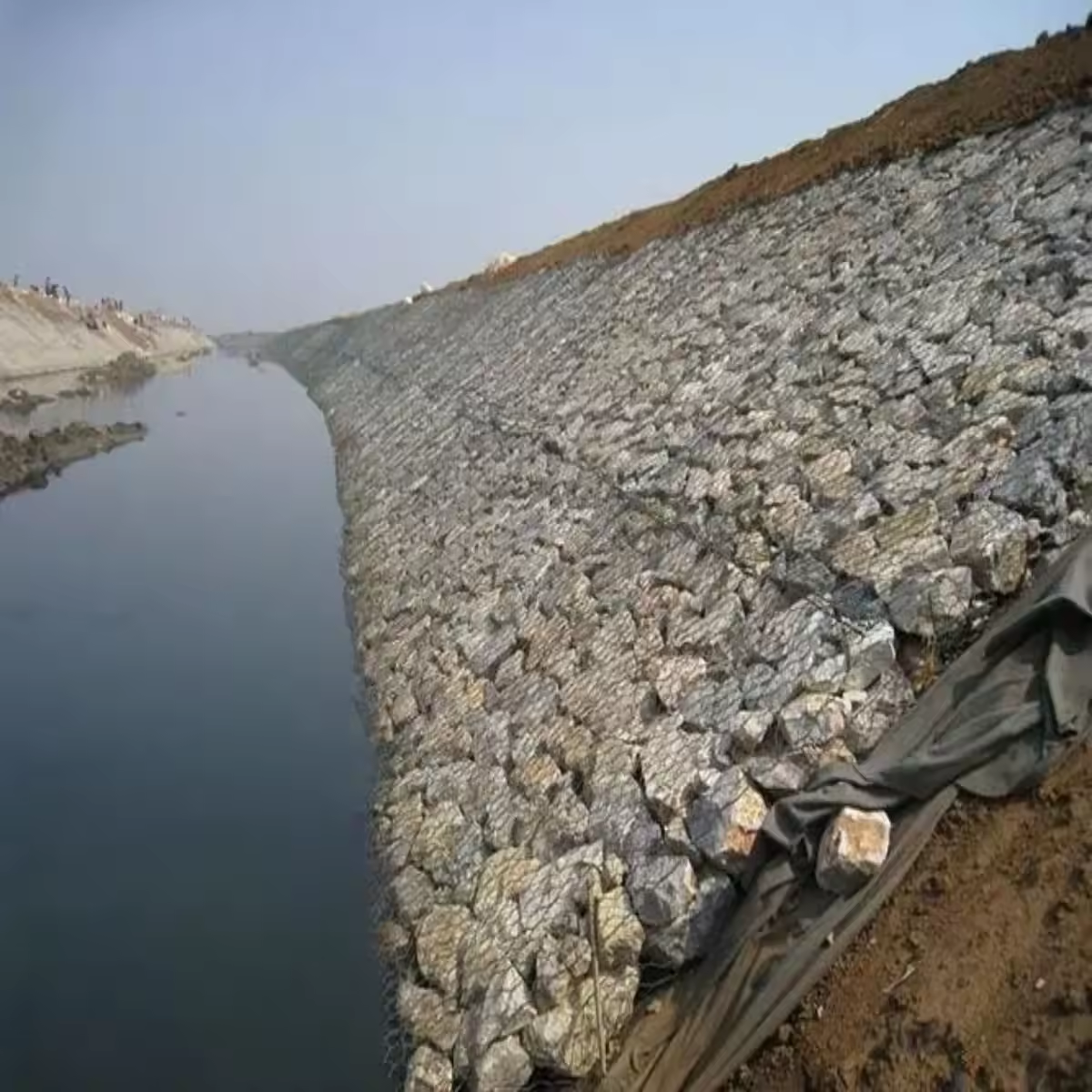

Slope protection.
Coastal protection.
Bridge protection.
