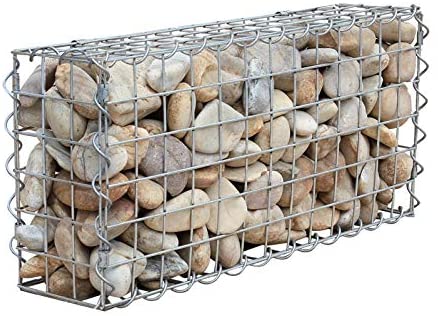

Welded Gabion Basket/Box
Welded Gabion Basket is made of steel wire with high tensile strength, then the wires are welded into a panel. Afterward we can use some mounting connections to assemble them quickly, such as hog ring connection, spiral joints connection, U clip connection and hook connection. The use of these accessories can reinforce the welded gabion box, making it is not easy to deform.
Features
Stable structure, and it is not easy to deform or crack.
High security.
Corrosion resistance and rust resistance, can be used in all weathers.
Modular structure makes installation quick and simple.
Low cost, recycle and friendly to environment.
Can be made into various shapes for decoration.
Specifications
Material: galvanized steel wire, Galfan coated steel wire or stainless steel wire.
Wire opening: 76.2 mm × 76.2 mm (3" × 3").
Wire diameter: 4 mm or 5 mm. (6 gauge or 9 gauge).
Dimensions: Gabions shall be supplied in various lengths and heights. Dimensions for heights, lengths, and widths are subject to a to 5% tolerance.
Standard sizes: 1 × 1 × 1, 2 × 1 × 1 m, 3 × 1 × 1 m.
Other size can be customized.
Applications

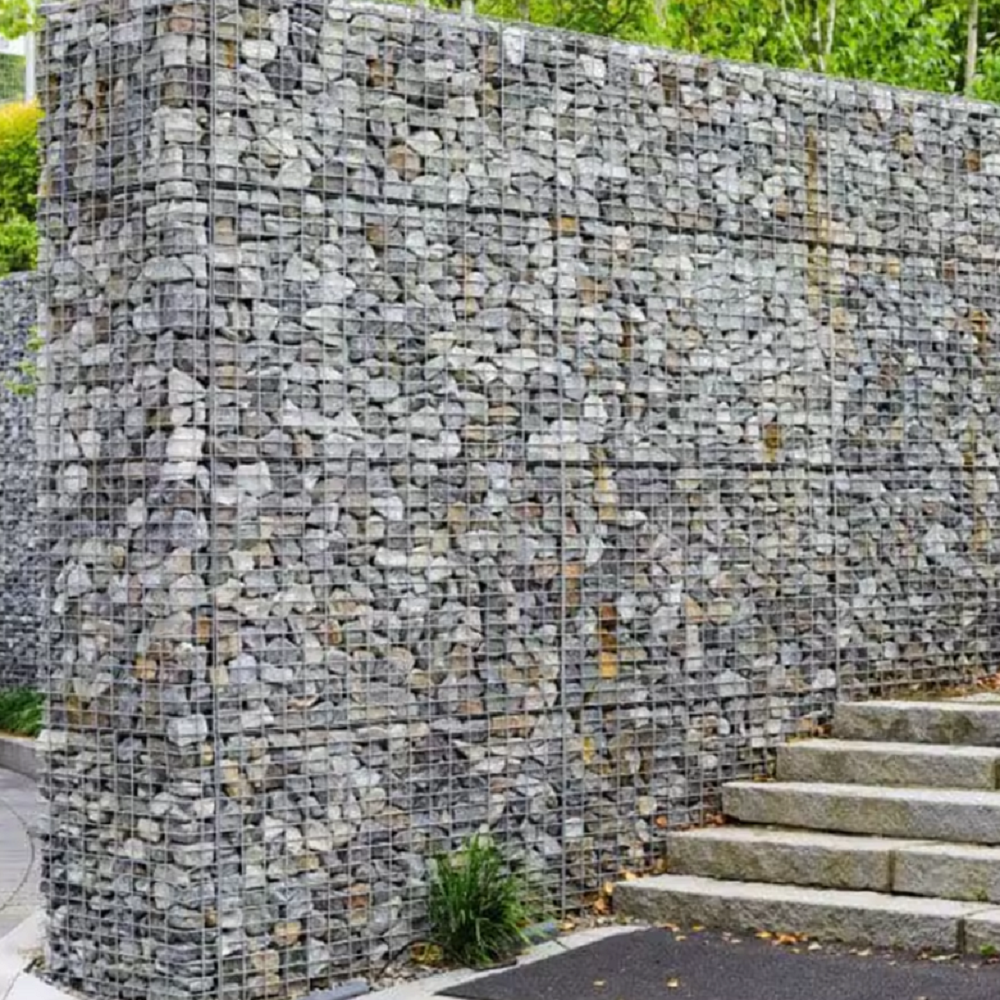

Gabion retaining wall.
Flood control.

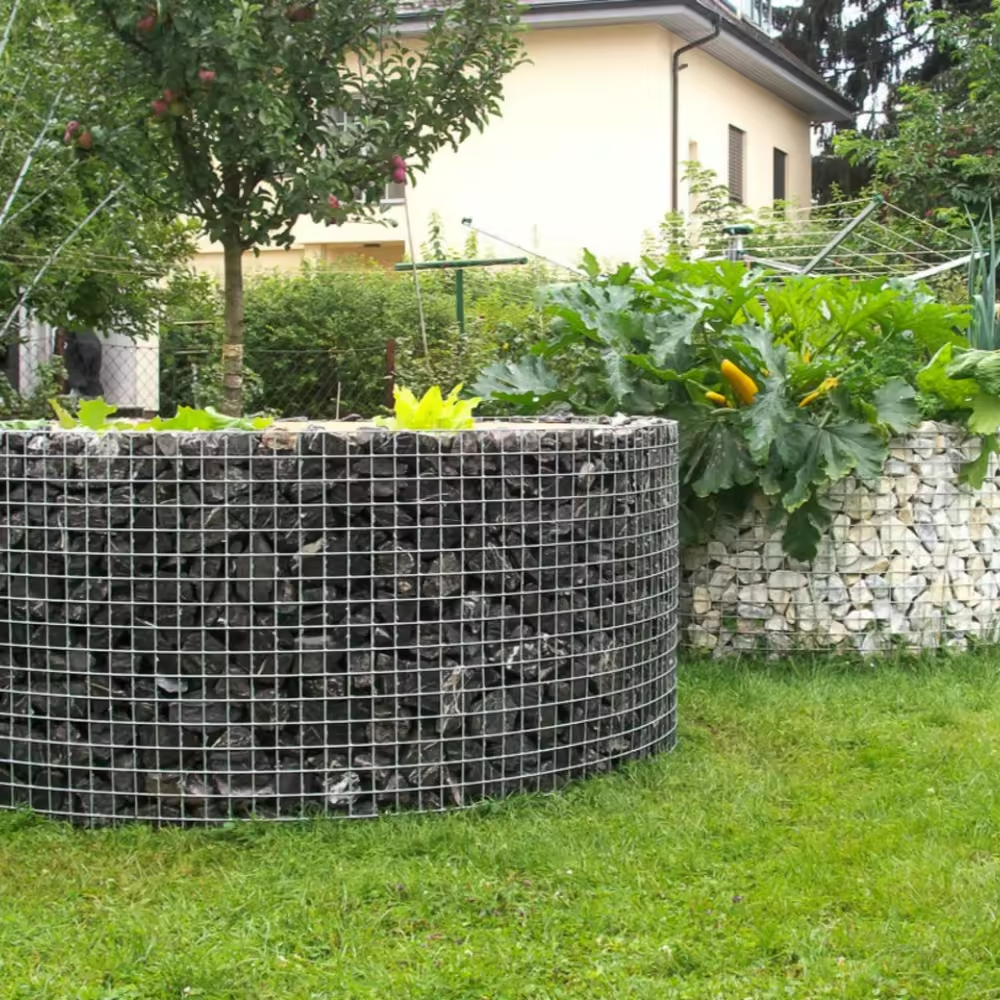

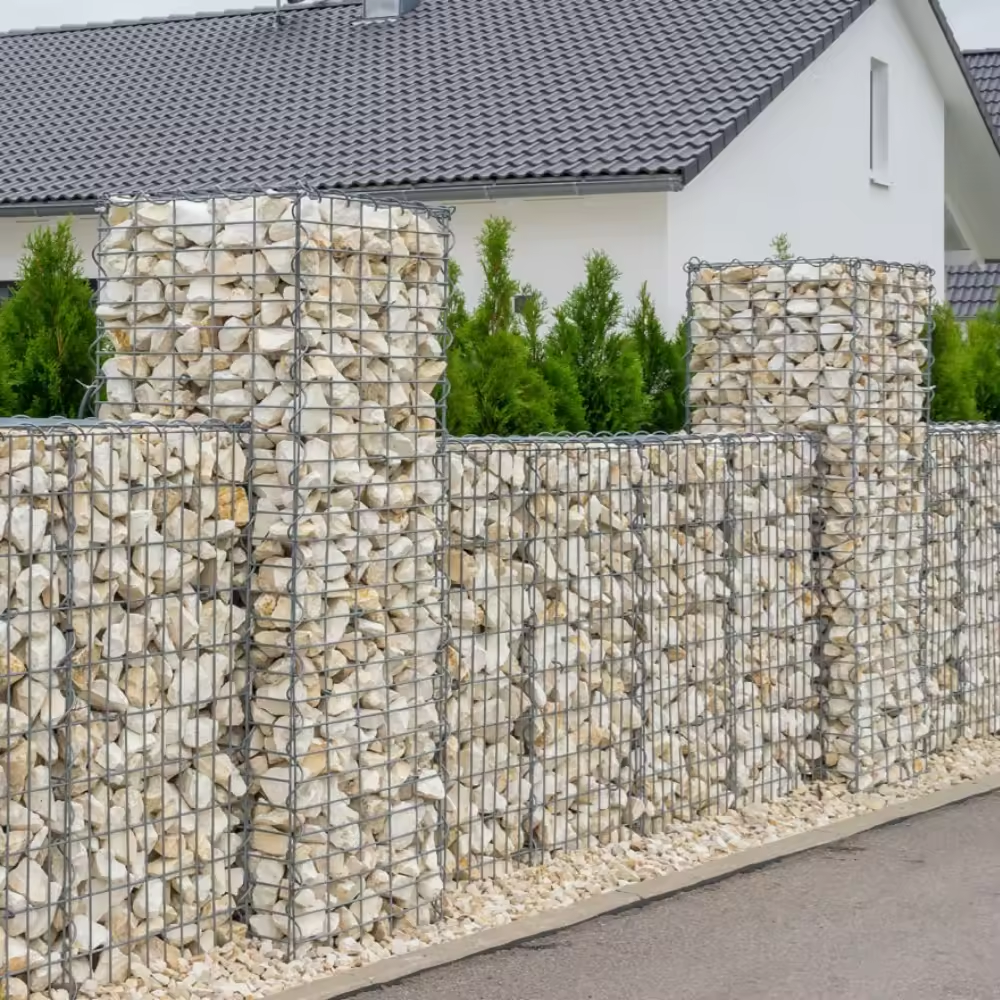

Garden and landscape.
Gabion noise barrier.
