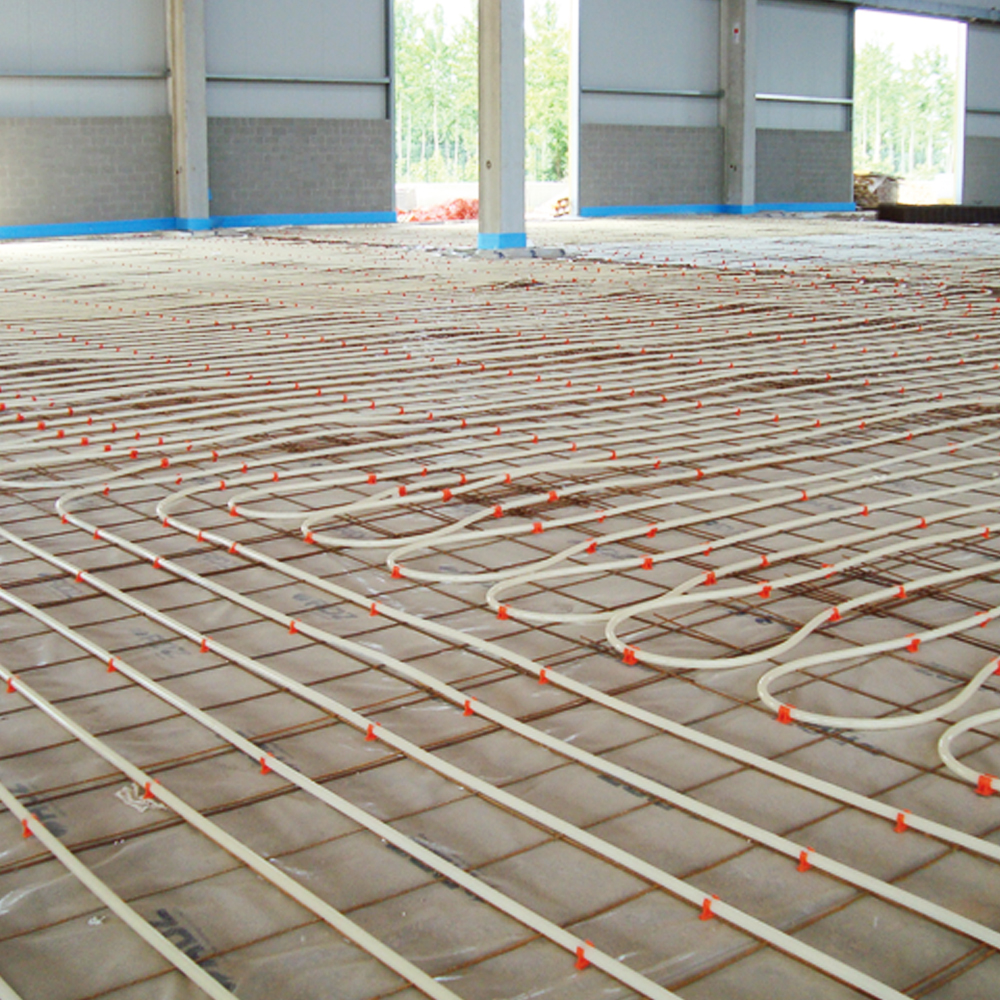

Welded Mesh Panels For Floor Heating System
The floor heating mesh called geothermal mesh,ground heating mesh panel, the special floor heating mesh panel, welded steel wire mesh panel which is made of black steel wire, galvanized wire or redrawing wire.This kind of welded wire mesh sheets offer strong welding spots, flat surface and precise openings.
Specifications
The most popular products and specifications.
Galvanized steel reinforcement mesh for underfloor heating.
Popular in Northern Europe:
Panel: 760 mm × 1160 mm
Hole Size: 70 mm × 70 mm
Wire diameter: 2.5 mm
Popular in Western Europe:
Panel: 1000 mm × 2000 mm
Hole Size: 75 mm × 75 mm, 50 mm × 50 mm
Wire diameter: 2 mm
Popular in Western Europe:
Panel: 1000 mm × 2000 mm
Hole Size: 100 mm × 100 mm, 80 mm × 80 mm
Wire diameter: 3 mm

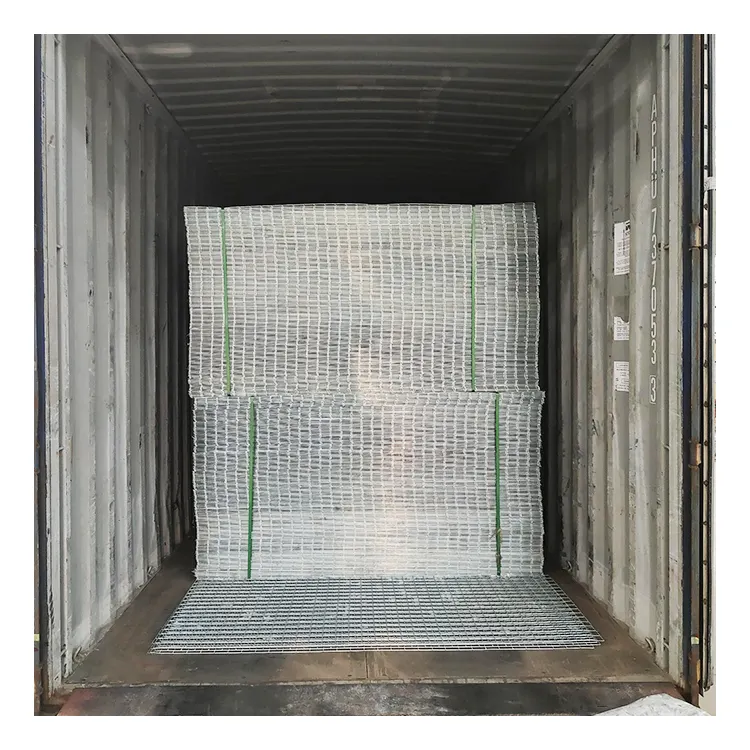

Package: 200 pcs/pallet or 250 pcs/pallet
| # | Item | Specification (m) | Wire Diameter (mm) | Aperture (cm) | Net WT (kg) |
|---|---|---|---|---|---|
| 1 | FHM-01 | 1 × 2 | 2 | 10 × 10 | 1.06 |
| 2 | FHM-02 | 1 × 2 | 2 | 15 × 15 | 0.67 |
| 3 | FHM-03 | 1 × 2 | 2 | 20 × 20 | 0.56 |
| 4 | FHM-04 | 1 × 2 | 2.5 | 10 × 10 | 1.65 |
| 5 | FHM-05 | 1 × 2 | 2.5 | 15 × 15 | 1.04 |
| 5 | FHM-06 | 1 × 2 | 2.5 | 20 × 20 | 0.88 |
| 7 | FHM-07 | 1 × 2 | 3 | 10 × 10 | 2.38 |
| 8 | FHM-08 | 1 × 2 | 3 | 15 × 15 | 1.5 |
| 9 | FHM-09 | 1 × 2 | 3 | 20 × 20 | 1.27 |
Applications
Prisons and correctional facipties
Miptary bases and government buildings
Airports and transportation hubs
Industrial and commercial properties
Data centers and server farms
Schools and universities
Sports facipties and stadiums
High-risk residential properties
