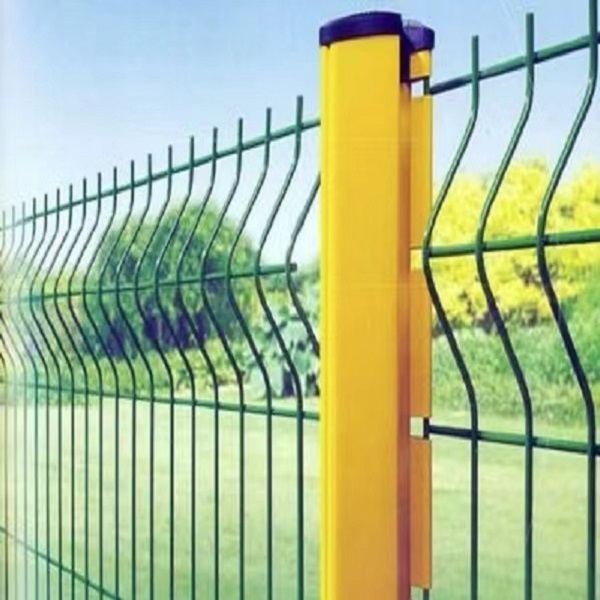

3D Welded Curvy Fence
Welded Curvy Fence with smooth surface and firm structure is made of high quality low carbon steel, stainless steel and aluminum alloy steel. Its surface treatment includes PVC coated, PVC praying, hot-dipped galvanized and electric galvanized. The PVC coated and galvanized surfaces have good corrosion resistance and weather resistance, so it can provides a long service life.
Features：
Excellent corrosion resistance, anti-aging and anti-aging property.
Sunshine resistance and weather-proof.
With rectangular mesh and horizontal reinforcement guarantee a very high level of rigidity.
Have four horizontal bending rebar therefore it will strengthen the fence network.
Not only has a beautiful outlook but also has a durable structure.
Can withstand outdoor exposure.
Easy and quick to transport and install.
Terrain adaptability, the adjacent column with undulating ground can be adjusted upwards or downwards.
Bright, reflective colors stand out in day or night.
Easy transportation, save time and labor cost.
Specifications：
Material: hot dip galvanized, pvc coated, stainless steel etc.
Wire diameter:2.5mm-6.0mm.

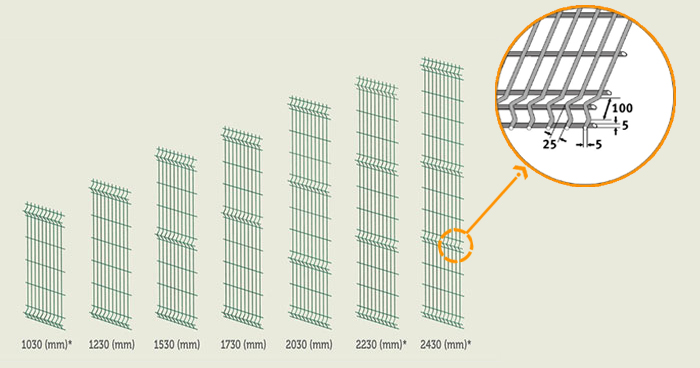

Mesh size:50 x 100mm, 60 x 120mm, 75 x 150mm,50x200mm.
Available in a range of sizes, colors.
| # | Panel Dim | Square Post Height (mm) | Wire (mm) | Opening | Curves Nos | Fastner Nos |
|---|---|---|---|---|---|---|
| W x H | (mm) | |||||
| 1 | 2500×830 | 1400 | 4.0mm or 5.0mm | 50×200 | 2 | 2 |
| 2 | 2500×103 | 1600 | 2 | 2 | ||
| 3 | 2500×123 | 1800 | 2 | 3 | ||
| 4 | 2500×153 | 2000 | 3 | 3 | ||
| 5 | 2500×173 | 2200 | 3 | 3 | ||
| 6 | 2500×203 | 2600 | 4 | 4 |
Applications:
Mainly used in highway and railway bridge on both sides of the protection zone.
Airports, ports, terminals security.
Municipal building in the park, lawn, zoo, pool lake, roads, and residential isolation.
Guest Houses, hotels, supermarkets and entertainment protective.
