Double Wire Fence

Double wire fence, known as double horizontal wire fence, 2d panel fence, or twin wire fence. Each welded point is welded with one vertical and two horizontal wires, compared with ordinary welded fence panels, double wire fence has higher strength and can withstand larger impacts and high winds.

Double wire fence is made of high quality low carbon steel wire, there are three types of surface treatment, including hot dip galvanized, powder coating or PVC coating, which can make double wire fence have a longer service life. The most common styles include 656 double wire fence and 868 double wire fence. 656 means horizontal direction contain two 6mm thick wire, vertical direction is one 5mm wire.

Features

High rigidity, high level security wire mesh panels.

Double horizontal wire welded to single vertical wire, endurable and stable.

Corrosion resistant.

Maintain a clear sight through horizontal aperture.

Beautiful in appearance, wide range of color.

Easy to deliver and install.

Specifications

Material: low carbon steel, stainless steel, mild steel.

Surface treatment: electro or hot dip galvanized and PVC coated.

Wire diameter: 5–8 mm.

Panel height: 1m–2.4 m.

Panel width: 2.5–3 m.

Color: green, white, gray, red, yellow, blue, black.

Specifications

# Panel Height x Width panel (mm) Post Height (mm) Mesh Opening(mm) Wire Diameter (mm) Post/Colume
1 630x2500 1100 50x200(standard)
25 x 200
100 x 200 		8/6/8mm or 6/5/6mm Square Post: 50x50mm, 60x60mm.

Rectangular Post:
40x60mm, 40x80mm, 60x80mm, 60x120mm

Thickness: 1.5 - 3.0mm
2 830x2500 1300
3 1030x2500 1500
4 1230x2500 1700
5 1430x2500 1900
5 1630x2500 2100
7 1830x2500 2400
8 2030x2500 2600
9 2230x2500 2800
10 2430x2500 3000

Applications

Prisons and correctional facipties

Miptary bases and government buildings

Airports and transportation hubs

Industrial and commercial properties

Data centers and server farms

Schools and universities

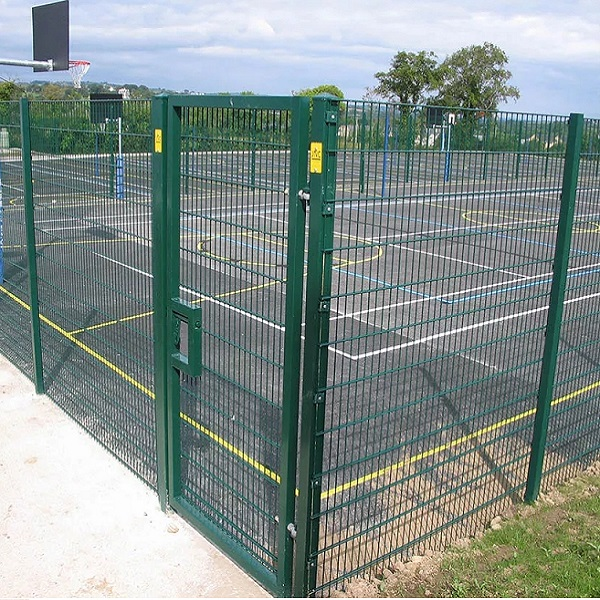

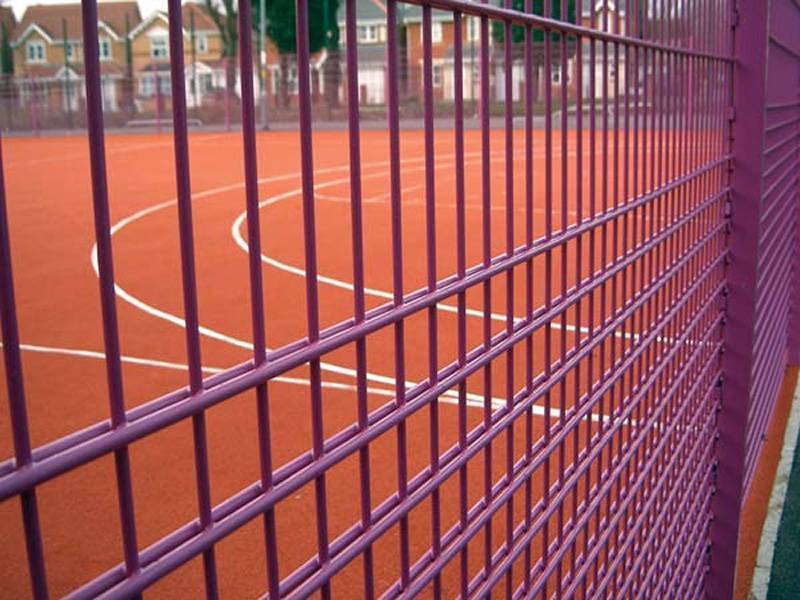

Sports facipties and stadiums

High-risk residential properties
